電訊插頭與插座 / Telecommunication plugs and sockets

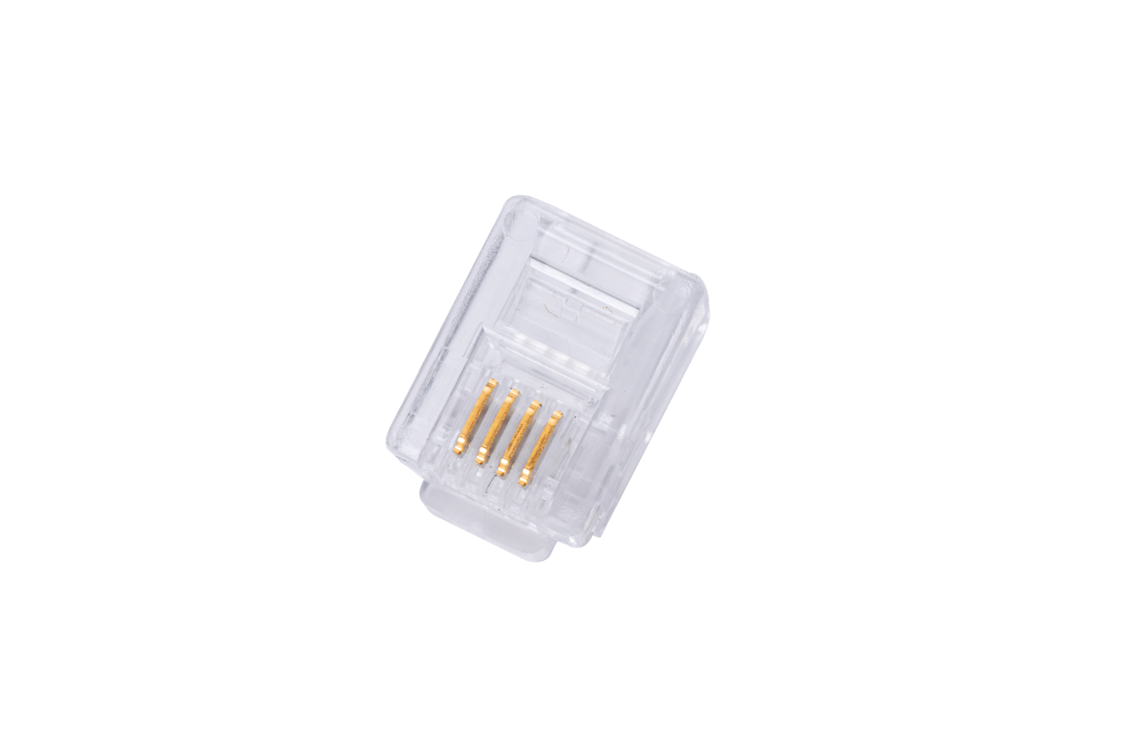

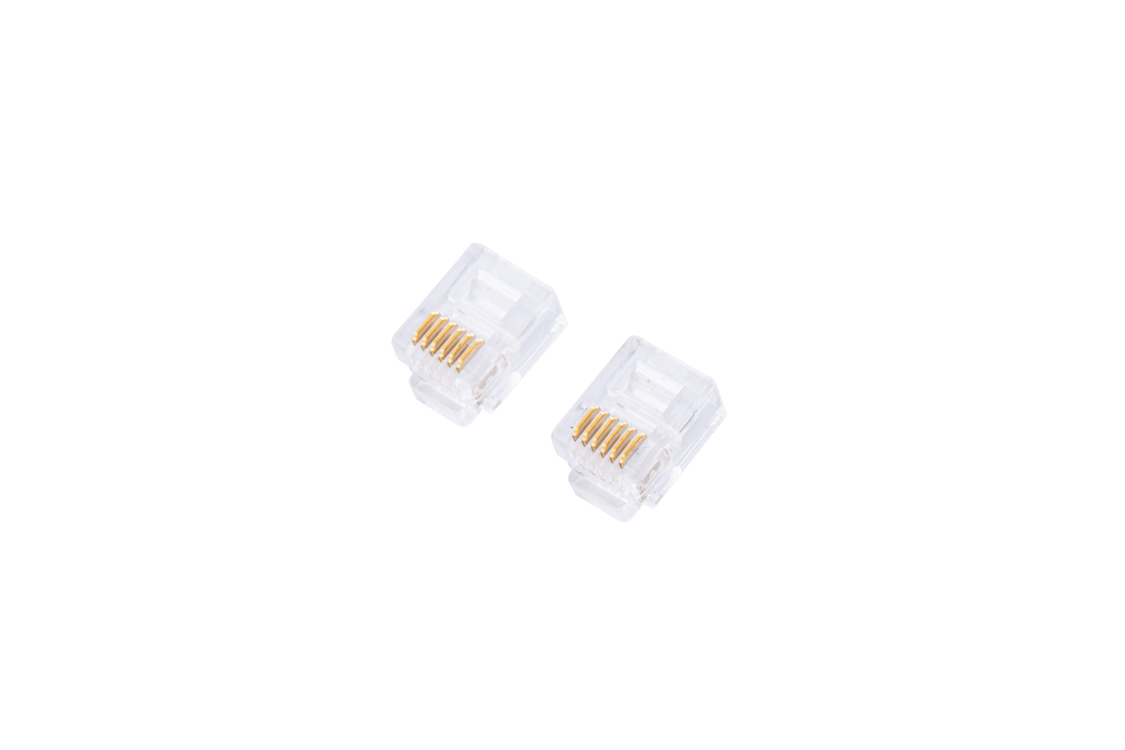

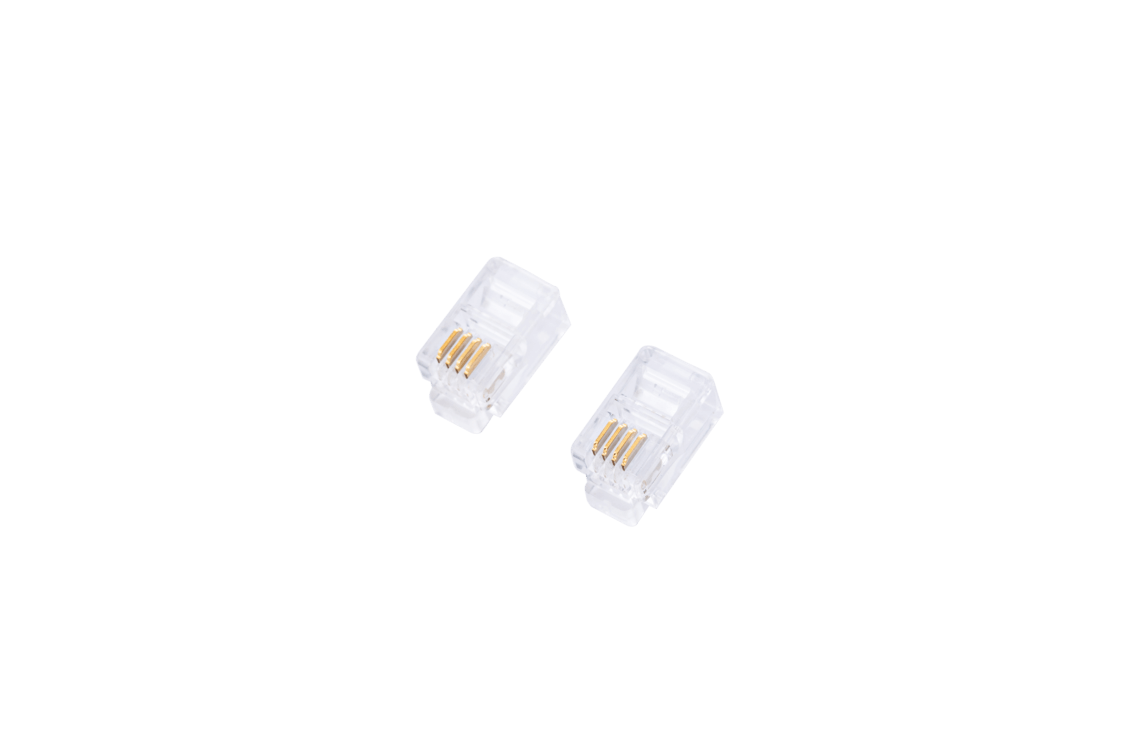

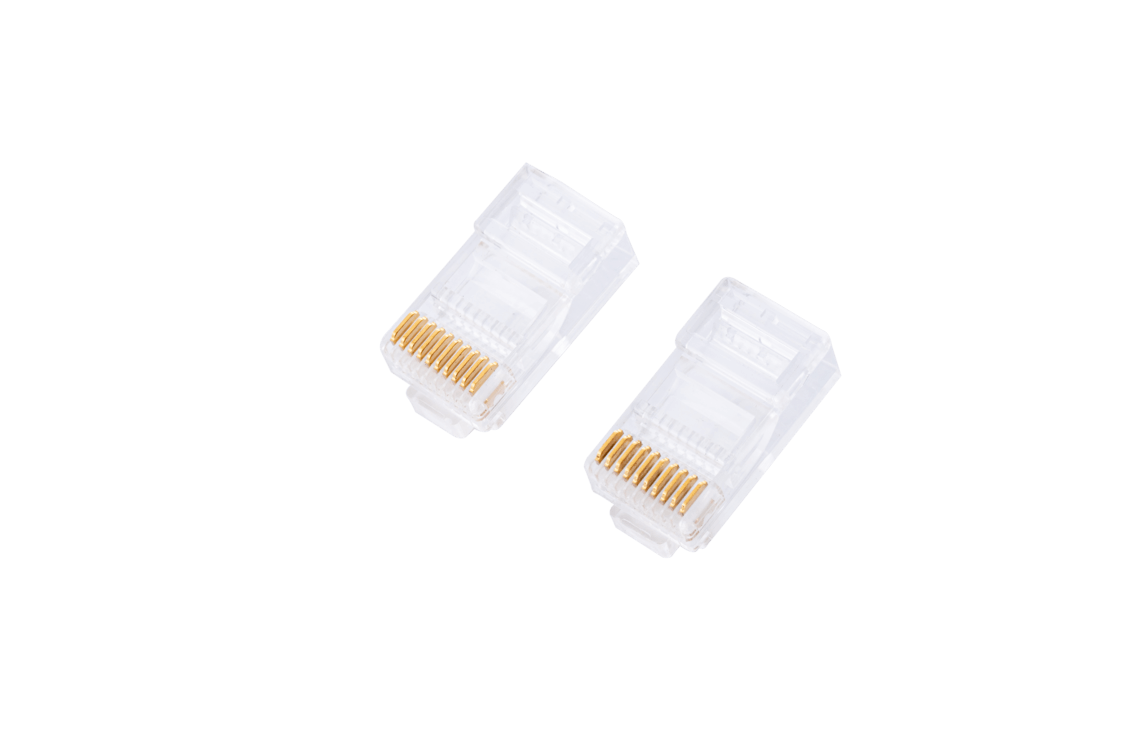

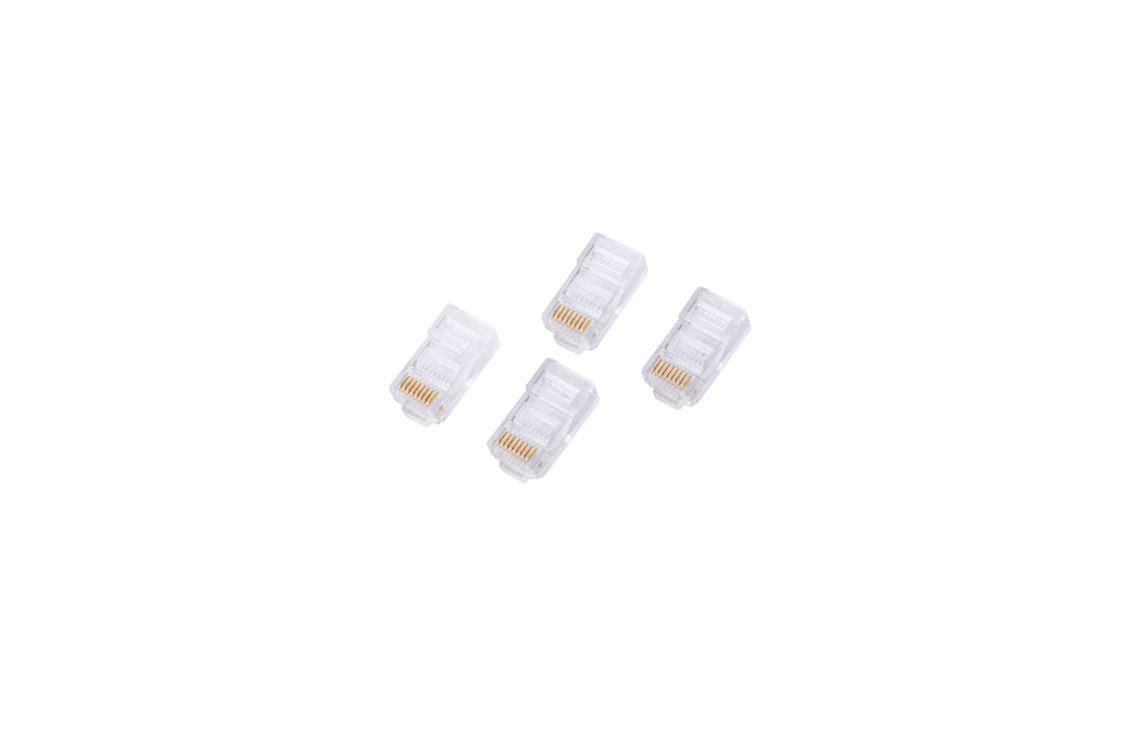

1 ) Modular telephone plug :

911 SERIES

4P2C 4P4C 6P2C 6P4C 6P6C 8P2C

8P4C 8P6C 8P8C 10P8C 10P10C FLAT & ROUND CABLE

914 SERIES

8P8C SHORT BORY FLAT & ROUND CABLE

915 SERIES

6P2C 6P4C 6P6C LONG BORY FLAT & ROUND CABLE

918 SERIES

6P2C 6P4C 6P6C LEFT OFFDET LATCH FLAT CABLE

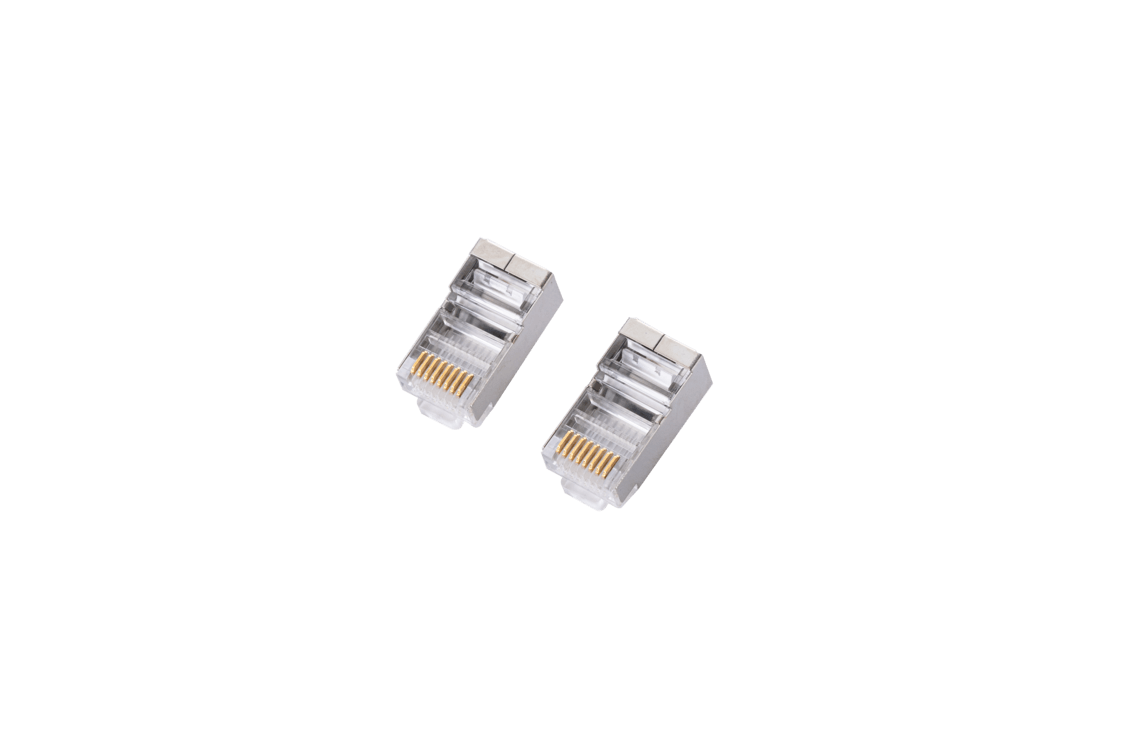

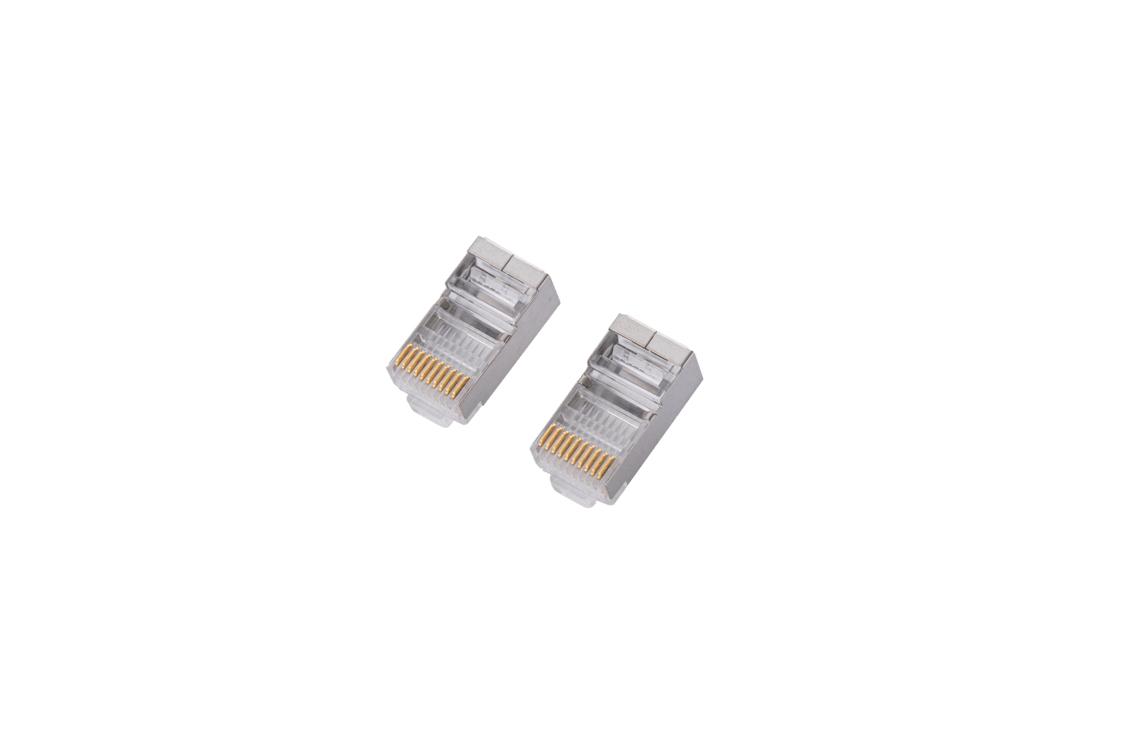

91G SERIES

8P8C 10P10C SHIELD FLAT CABLE

2 ) Modular plug specification :　

1.MATERIAL AND FINISHED:

　A Housing: Transparent Polycarbonate, UL 94V-0 or UL 94V-2

　B Contact: Phosphor Bronze, Selective Gold Plated In Contact Area Over 100 micro-Inches Nickel Plated.

2.ELECTRICAL:

　2.1 Current Rating: 250V AC Max. At 2 Amps.

　2.2 Dielectric Withstanding Voltage: 1000V AC.

　2.3 Insulation Resistance: 500 Megohms Min.

　2.4 Termination Resistance: 20 Milliohms Max. (Initial)

　35 Milliohms Max. After Environmental Testing.

3.MECHANICAL:

　3.1 Durability: 500 Mating Cycles.

　3.2 Operation Temperature: -25℃～+80℃

　3.3 Contact Retention: 1.5 lbs (6N) Min.

　3.4 Cable-To-Plug Tensile Strength: 20 lbs (89N) Min.

4.APPLICATION:

　4.1 Available For Flat-oval or Round Cable.

　4.2 Available For Stranded or Solid Wire Range From 24～26 Awg.
